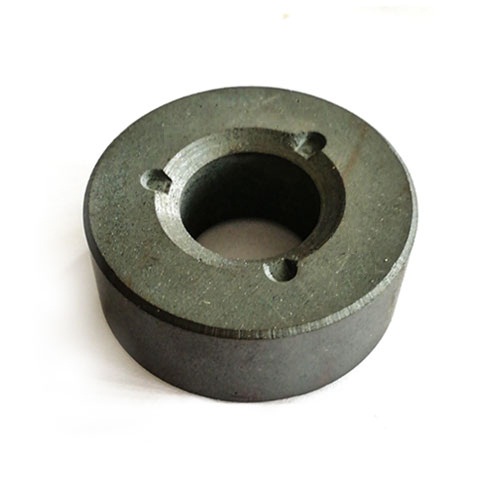

I. Polar Sintered Anisotropic Ferrite Multipole Rings
The Permanent ferrite magnet is made of SrO or BaO and Fe2O3 by ceramic processing technology.The texture is relatively hard, brittle material.According to the different orientation of the crystal , it can be divided into isotropic magnets and anisotropic magnets. Due to the ferrite has good temperature resistance with low cost, which has become one of the most used magnets.
The products of the company are with precision size, stable performance, excellent quality products; the diameter is in the range of 10mm-80mm, from 2 poles to 48 poles with variety of specifications, we can supply sine wave, trapezoidal wave, square wave and other magnetizing waveform. High performance of the products and the surface magnetic flux density can reach from 1200 GS to 2100GS.
The products are widely used in Brushless DC motor, precision servo motor, permanent magnet motor, micro motor, instrumentation, magnetic drive, magnetic therapy devices,etc.
II. Production process
III：Manufacturing process and magnetizing
① With dry process can produce isotropic & anisotropic magnets, the tool can be changed and developed easily.
② With wet process only can produce anisotropic magnets,it is complicated to change the tool and the tooling charge is high.
③ Isotropic ferrite magnets can be magnetized in any direction.
④ Anisotropic ferrite magnets are all oriented in the manufacturing direction, and can be magnetized in the direction of orientation.
IV: Partially sintered ferrite multipole magnetic ring specification
and surface flux density list
| 序号 No. | 规格 Specification | 外径 Outside Diameter | 内径 Inside Diameter | 高度 Height | 极数 Polar | 表面磁通密度 Surface magnetic flux density (GS) |
| 1 | OD 25* ID (6.5~7.0) * H25~40 | 25 | 6.5~7.0 | 25~40 | 2 | 1400-2100 |
| 2 | OD 19* ID (6~7)*30 | 18 | 6~7 | 30 | 2 | 1400-2100 |
| 3 | OD15* ID (5~6)*H (18~30) | 15 | 5~6 | 18~30 | 2 | 1400-2100 |
| 4 | OD38.4*ID16*H28 | 38.4 | 16 | 28 | 4 | 1400-2100 |
| 5 | OD32*ID10.6*H18 | 32 | 10.6 | 18 | 4 | 1400-2100 |
| 6 | OD30*ID10*H30 | 30 | 10 | 30 | 4 | 1400-2100 |
| 7 | OD22*ID10*H30 | 22 | 10 | 30 | 4 | 1400-2100 |
| 8 | OD16*ID5*H30 | 16 | 5 | 30 | 4 | 1400-2100 |
| 9 | OD37.7*ID16*H15 | 37.7 | 16 | 15 | 6 | 1400-2100 |
| 10 | OD35.4*ID15*H18 | 35.4 | 15 | 18 | 6 | 1400-2100 |
| 11 | OD54*ID35*H31 | 54 | 35 | 31 | 6 | 1400-2100 |
| 12 | OD53.7*ID34.7*H(25~40) | 53.7 | 34.7 | 25~40 | 8 | 1400-2100 |
| 13 | OD23.4*ID11*H9.5 | 23.4 | 11 | 9.5 | 8 | 1400-2100 |
| 14 | OD50*ID30*H30 | 50 | 30 | 30 | 8 | 1400-2100 |
| 15 | OD37*ID22*H20 | 37 | 22 | 20 | 10 | 1400-2100 |
| 16 | OD16*ID9*H18 | 16 | 9 | 18 | 12 | 1400-2100 |
| 17 | OD12.2*ID7*H13 | 12.2 | 7 | 13 | 12 | 1400-2100 |
| 18 | OD32.9*ID24*H30 | 32.9 | 24 | 30 | 24 | 1400-2100 |
| 19 | OD30*ID21*H25.5 | 30 | 21 | 25.5 | 24 | 1400-2100 |
| 20 | OD36.2*ID18*25-4P | 36.2 | 18 | 25 | 4 | 1400-2100 |
| 21 | OD34.8*ID17*H26-8P | 34.8 | 17 | 26 | 8 | 1400-2100 |
| 22 | OD20.8*ID6*H30-4P | 20.8 | 6 | 30 | 4 | 1400-2100 |
| 23 | OD24.4*ID14.2*H15-4P | 24.4 | 14.2 | 25 | 4 | 1400-2100 |
| 24 | OD45.5*ID25.5*H25-8P | 45.5 | 25.5 | 25 | 8 | 1400-2100 |
| 25 | OD50*ID27*H21-8P | 50 | 27 | 21 | 8 | 1400-2100 |
| 26 | OD50.3*ID27*30-8P | 50.3 | 27 | 30 | 8 | 1400-2100 |
| 27 | OD54*ID35*H40-8P | 54 | 35 | 40 | 8 | 1400-2100 |
| 28 | OD54.5*ID33*H36-8P | 54.5 | 33 | 36 | 8 | 1400-2100 |
| 29 | OD53.8*ID35*H35-6P | 53.8 | 35 | 35 | 6 | 1400-2100 |
| 30 | OD59*ID39*H26-6P | 59 | 39 | 26 | 6 | 1400-2100 |
V: Main performance parameters of sintered ferrite magnets:
| 牌号Grade | 剩磁(Br) | 磁感矫顽力(HcB) | 内禀矫顽力(HcJ) | 最大磁能积(BH)max | ||||
| mT | KGauss | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
| Y8T | 200~235 | 2.0~2.35 | 125-160 | 1.57-2.01 | 210-280 | 2.64-3.51 | 6.5-9.5 | 0.8-1.2 |
| Y22H | 310~360 | 3.10~3.60 | 220-250 | 2.76-3.14 | 280-320 | 3.51-4.02 | 20.0-24.0 | 2.5-3.0 |
| Y25 | 360~400 | 3.60~4.00 | 135-170 | 1.70-2.14 | 140-200 | 1.76-2.51 | 22.5-28.0 | 2.8-3.5 |
| Y26H-1 | 360~390 | 3.60~3.90 | 200-250 | 2.51-3.14 | 225-255 | 2.83-3.20 | 23.0-28.0 | 2.9-3.5 |
| Y26H-2 | 360~380 | 3.60~3.80 | 263-288 | 3.30-3.62 | 318-350 | 3.99-4.40 | 24.0-28.0 | 3.0-3.5 |
| Y27H | 350~380 | 3.50~3.80 | 225-240 | 2.83-3.01 | 235-260 | 2.95-3.27 | 25.0-29.0 | 3.1-3.6 |
| Y28 | 370~400 | 3.80~4.00 | 175-210 | 2.20-3.64 | 180-220 | 2.26-2.76 | 26.0-30.0 | 3.3-3.8 |
| Y28H-1 | 380~400 | 3.70~4.00 | 240-260 | 3.01-3.27 | 250-280 | 3.14-3.52 | 27.0-30.0 | 3.4-3.8 |
| Y28H-2 | 360~380 | 3.60~3.80 | 271-295 | 3.40-3.70 | 382-405 | 4.8-5.08 | 26.0-30.0 | 3.3-3.8 |
| Y30H-1 | 380~400 | 3.80~4.00 | 230-275 | 2.89-3.46 | 235-290 | 2.95-3.64 | 27.0-32.5 | 3.4-4.1 |
| Y30H-2 | 395~415 | 3.95~4.15 | 275-300 | 3.45-3.77 | 310-335 | 3.89-4.20 | 27.0-32.0 | 3.4-4.0 |
| Y32 | 400~420 | 4.00~4.20 | 160-190 | 2.01-2.39 | 165-195 | 2.07-2.45 | 30.0-33.5 | 3.8-4.2 |
| Y32H-1 | 380~400 | 3.80~4.00 | 230-275 | 2.89-3.46 | 235-290 | 2.95-3.64 | 27.0-32.5 | 3.4-4.1 |
| Y32H-2 | 395~415 | 3.95~4.15 | 275-300 | 3.45-3.77 | 310-335 | 3.89-4.20 | 27.0-32.0 | 3.4-4.0 |
| Y33 | 410~430 | 4.10~4.30 | 220-250 | 2.76-3.14 | 225-255 | 2.83-3.20 | 31.5-35.0 | 3.9-4.4 |
| Y33H | 410~430 | 4.10~4.30 | 250-270 | 3.14-3.39 | 250-275 | 3.14-3.45 | 31.5-35.0 | 3.9-4.4 |
| Y34 | 420~440 | 4.20~4.40 | 200-230 | 2.51-2.89 | 205-235 | 2.57-2.95 | 32.5-36.0 | 4.1-4.4 |
| Y35 | 430~450 | 4.30~4.50 | 215-239 | 2.70-3.00 | 217-241 | 2.73-3.03 | 33.1-38.2 | 4.1-4.8 |
| Y36 | 430~450 | 4.30~4.50 | 247-271 | 3.10-3.40 | 250-274 | 3.14-3.44 | 35.1-38.3 | 4.4-4.8 |
| Y38 | 440~460 | 4.40~4.60 | 285-305 | 3.58-3.83 | 294-310 | 3.69-3.89 | 36.6-40.6 | 4.6-5.1 |
| Y40 | 440~460 | 4.40~4.60 | 330-354 | 4.15-4.45 | 340-360 | 4.27-4.52 | 37.6-41.8 | 4.7-5.2 |
