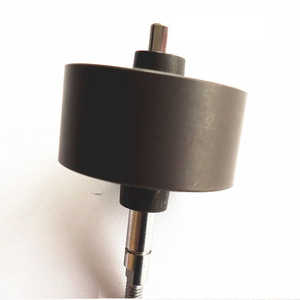

Ferrite injection motor magnet
SPN
85051900
| Quantity: | |
|---|---|
I.Injection Bonded Ferrite Magnet Properties
It is a new kind of composite permanent magnetic material with the features of flexible shaping, precision dimension, adjustable magnetic properties, fine coherence, composite molding, elastic magnetization and high mechanical strength.
Low cost, widely used in many different applications ,stable magnetic property with strong demagnetization resistance capability. Good corrosion resistance capability, no coating. The injection bonded ferrite magnet is widely applied in core components and parts of micro machine, location sensor, buzzer, con-tactless distributor For automotive and home appliance industry.
II. Ferrite composite magnet types and properties (Ferrite +rare earth permanent magnet)
| Model | Remanence Br (KG) | Maximum energy product (Mage) | Intrinsic coercivity Hcj (Koe) | Coercive force Hcb (koe) |
| HGH-2 | 2.5-3.3 | 1.5-2.5 | 2.6-3.4 | 2.1-2.5 |
| HGH-3 | 3.3-9.9 | 2.5-3.5 | 3.4-4.0 | 2.5-3.1 |
| HGH-4 | 3.9-4.0 | 3.5-4.5 | 4.0-4.9 | 3.1-4.0 |
| HGH-5 | 4.6-5.1 | 4.5-5.5 | 4.9-5.8 | 4.0-4.5 |
| HGH-6 | 5.1-5.6 | 5.5-6.5 | 5.8-6.6 | 4.5-4.8 |
| HGH-7 | 5.6-6.0 | 6.5-7.5 | 6.6-7.2 | 4.8-5.0 |
| HGH-8 | 6.0-6.4 | 7.5-8.5 | 7.2-7.6 | 5.0-5.2 |
| HGH-9 | 6.4-6.8 | 8.5-9.5 | 7.6-8.0 | 5.2-5.4 |
| HGH-10 | 6.8-7.1 | 9.5-10.5 | 8.0-8.3 | 5.4-5.5 |
| HGH-11 | 7.1-7.4 | 10.5-11.5 | 8.3-8.6 | 5.5-5.6 |
| HGH-12 | 7.4-7.6 | 11.5-12.5 | 8.6-8.8 | 5.6-5.8 |
