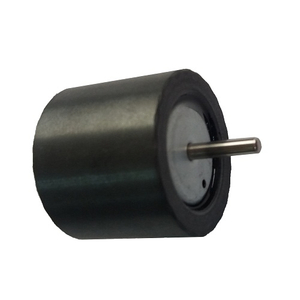

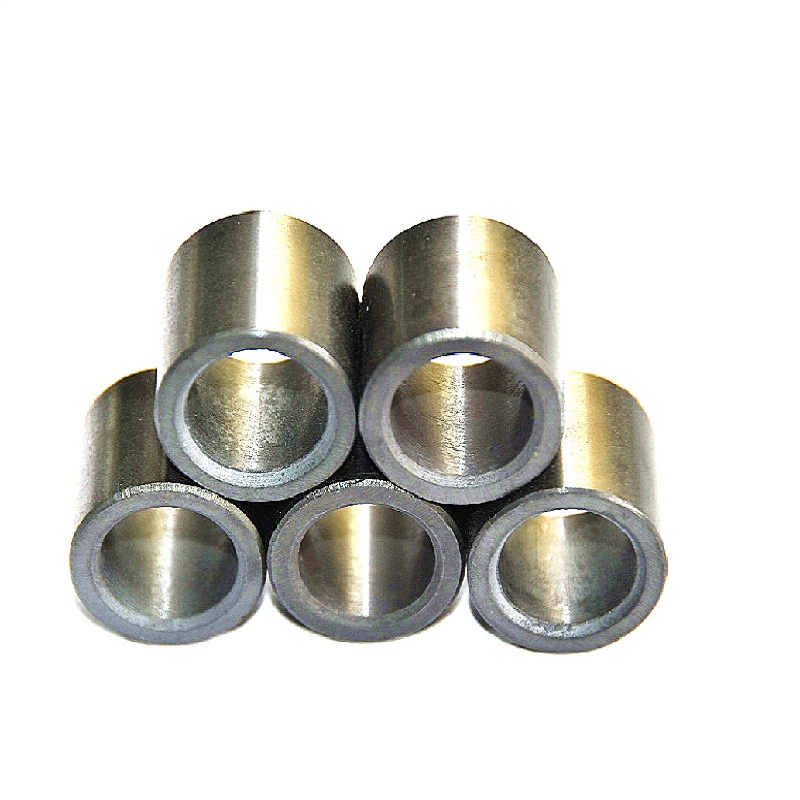

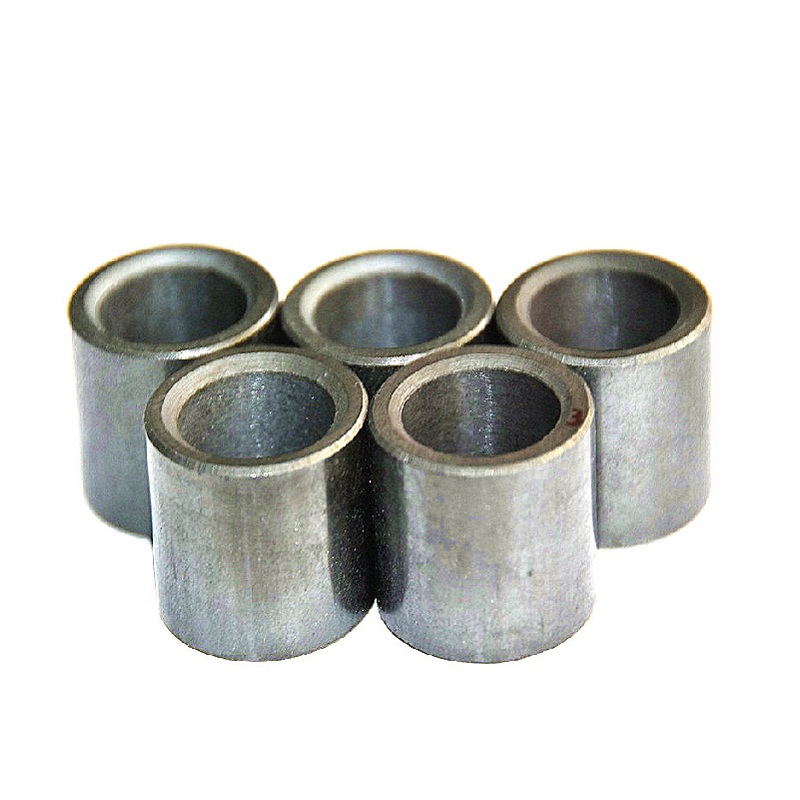

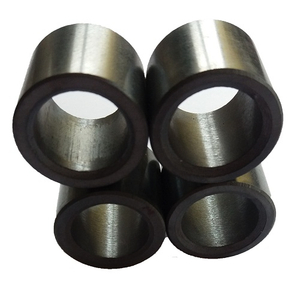

Ferrite isotropic magnet rings in stepping motor
SPN
85051900
| Quantity: | |
|---|---|
II：Manufacturing process and magnetizing
① With dry process can produce isotropic & anisotropic magnets, the tool can be changed and developed easily.
② With wet process only can produce anisotropic magnets,it is complicated to change the tool and the tooling charge is high.
③ Isotropic ferrite magnets can be magnetized in any direction.
④ Anisotropic ferrite magnets are all oriented in the manufacturing direction, and can be magnetized in the direction of orientation.
III: Partially sintered ferrite multipole magnetic ring specification and surface flux density list
序号 No. | 规格 Specification | 外径 Outside Diameter | 内径 Inside Diameter | 高度 Height | 极数 Polar | 表面磁通密度 Surface magnetic flux density (GS) |
1 | OD 25* ID (6.5~7.0) * H25~40 | 25 | 6.5~7.0 | 25~40 | 2 | 1400-2100 |
2 | OD 19* ID (6~7)*30 | 18 | 6~7 | 30 | 2 | 1400-2100 |
3 | OD15* ID (5~6)*H (18~30) | 15 | 5~6 | 18~30 | 2 | 1400-2100 |
4 | OD38.4*ID16*H28 | 38.4 | 16 | 28 | 4 | 1400-2100 |
5 | OD32*ID10.6*H18 | 32 | 10.6 | 18 | 4 | 1400-2100 |
6 | OD30*ID10*H30 | 30 | 10 | 30 | 4 | 1400-2100 |
7 | OD22*ID10*H30 | 22 | 10 | 30 | 4 | 1400-2100 |
8 | OD16*ID5*H30 | 16 | 5 | 30 | 4 | 1400-2100 |
9 | OD37.7*ID16*H15 | 37.7 | 16 | 15 | 6 | 1400-2100 |
10 | OD35.4*ID15*H18 | 35.4 | 15 | 18 | 6 | 1400-2100 |
11 | OD54*ID35*H31 | 54 | 35 | 31 | 6 | 1400-2100 |
12 | OD53.7*ID34.7*H(25~40) | 53.7 | 34.7 | 25~40 | 8 | 1400-2100 |
13 | OD23.4*ID11*H9.5 | 23.4 | 11 | 9.5 | 8 | 1400-2100 |
14 | OD50*ID30*H30 | 50 | 30 | 30 | 8 | 1400-2100 |
15 | OD37*ID22*H20 | 37 | 22 | 20 | 10 | 1400-2100 |
16 | OD16*ID9*H18 | 16 | 9 | 18 | 12 | 1400-2100 |
17 | OD12.2*ID7*H13 | 12.2 | 7 | 13 | 12 | 1400-2100 |
18 | OD32.9*ID24*H30 | 32.9 | 24 | 30 | 24 | 1400-2100 |
19 | OD30*ID21*H25.5 | 30 | 21 | 25.5 | 24 | 1400-2100 |
20 | OD36.2*ID18*25-4P | 36.2 | 18 | 25 | 4 | 1400-2100 |
21 | OD34.8*ID17*H26-8P | 34.8 | 17 | 26 | 8 | 1400-2100 |
22 | OD20.8*ID6*H30-4P | 20.8 | 6 | 30 | 4 | 1400-2100 |
23 | OD24.4*ID14.2*H15-4P | 24.4 | 14.2 | 25 | 4 | 1400-2100 |
24 | OD45.5*ID25.5*H25-8P | 45.5 | 25.5 | 25 | 8 | 1400-2100 |
25 | OD50*ID27*H21-8P | 50 | 27 | 21 | 8 | 1400-2100 |
26 | OD50.3*ID27*30-8P | 50.3 | 27 | 30 | 8 | 1400-2100 |
27 | OD54*ID35*H40-8P | 54 | 35 | 40 | 8 | 1400-2100 |
28 | OD54.5*ID33*H36-8P | 54.5 | 33 | 36 | 8 | 1400-2100 |
29 | OD53.8*ID35*H35-6P | 53.8 | 35 | 35 | 6 | 1400-2100 |
30 | OD59*ID39*H26-6P | 59 | 39 | 26 | 6 | 1400-2100 |
II：Manufacturing process and magnetizing
① With dry process can produce isotropic & anisotropic magnets, the tool can be changed and developed easily.
② With wet process only can produce anisotropic magnets,it is complicated to change the tool and the tooling charge is high.
③ Isotropic ferrite magnets can be magnetized in any direction.
④ Anisotropic ferrite magnets are all oriented in the manufacturing direction, and can be magnetized in the direction of orientation.
III: Partially sintered ferrite multipole magnetic ring specification and surface flux density list
序号 No. | 规格 Specification | 外径 Outside Diameter | 内径 Inside Diameter | 高度 Height | 极数 Polar | 表面磁通密度 Surface magnetic flux density (GS) |
1 | OD 25* ID (6.5~7.0) * H25~40 | 25 | 6.5~7.0 | 25~40 | 2 | 1400-2100 |
2 | OD 19* ID (6~7)*30 | 18 | 6~7 | 30 | 2 | 1400-2100 |
3 | OD15* ID (5~6)*H (18~30) | 15 | 5~6 | 18~30 | 2 | 1400-2100 |
4 | OD38.4*ID16*H28 | 38.4 | 16 | 28 | 4 | 1400-2100 |
5 | OD32*ID10.6*H18 | 32 | 10.6 | 18 | 4 | 1400-2100 |
6 | OD30*ID10*H30 | 30 | 10 | 30 | 4 | 1400-2100 |
7 | OD22*ID10*H30 | 22 | 10 | 30 | 4 | 1400-2100 |
8 | OD16*ID5*H30 | 16 | 5 | 30 | 4 | 1400-2100 |
9 | OD37.7*ID16*H15 | 37.7 | 16 | 15 | 6 | 1400-2100 |
10 | OD35.4*ID15*H18 | 35.4 | 15 | 18 | 6 | 1400-2100 |
11 | OD54*ID35*H31 | 54 | 35 | 31 | 6 | 1400-2100 |
12 | OD53.7*ID34.7*H(25~40) | 53.7 | 34.7 | 25~40 | 8 | 1400-2100 |
13 | OD23.4*ID11*H9.5 | 23.4 | 11 | 9.5 | 8 | 1400-2100 |
14 | OD50*ID30*H30 | 50 | 30 | 30 | 8 | 1400-2100 |
15 | OD37*ID22*H20 | 37 | 22 | 20 | 10 | 1400-2100 |
16 | OD16*ID9*H18 | 16 | 9 | 18 | 12 | 1400-2100 |
17 | OD12.2*ID7*H13 | 12.2 | 7 | 13 | 12 | 1400-2100 |
18 | OD32.9*ID24*H30 | 32.9 | 24 | 30 | 24 | 1400-2100 |
19 | OD30*ID21*H25.5 | 30 | 21 | 25.5 | 24 | 1400-2100 |
20 | OD36.2*ID18*25-4P | 36.2 | 18 | 25 | 4 | 1400-2100 |
21 | OD34.8*ID17*H26-8P | 34.8 | 17 | 26 | 8 | 1400-2100 |
22 | OD20.8*ID6*H30-4P | 20.8 | 6 | 30 | 4 | 1400-2100 |
23 | OD24.4*ID14.2*H15-4P | 24.4 | 14.2 | 25 | 4 | 1400-2100 |
24 | OD45.5*ID25.5*H25-8P | 45.5 | 25.5 | 25 | 8 | 1400-2100 |
25 | OD50*ID27*H21-8P | 50 | 27 | 21 | 8 | 1400-2100 |
26 | OD50.3*ID27*30-8P | 50.3 | 27 | 30 | 8 | 1400-2100 |
27 | OD54*ID35*H40-8P | 54 | 35 | 40 | 8 | 1400-2100 |
28 | OD54.5*ID33*H36-8P | 54.5 | 33 | 36 | 8 | 1400-2100 |
29 | OD53.8*ID35*H35-6P | 53.8 | 35 | 35 | 6 | 1400-2100 |
30 | OD59*ID39*H26-6P | 59 | 39 | 26 | 6 | 1400-2100 |
